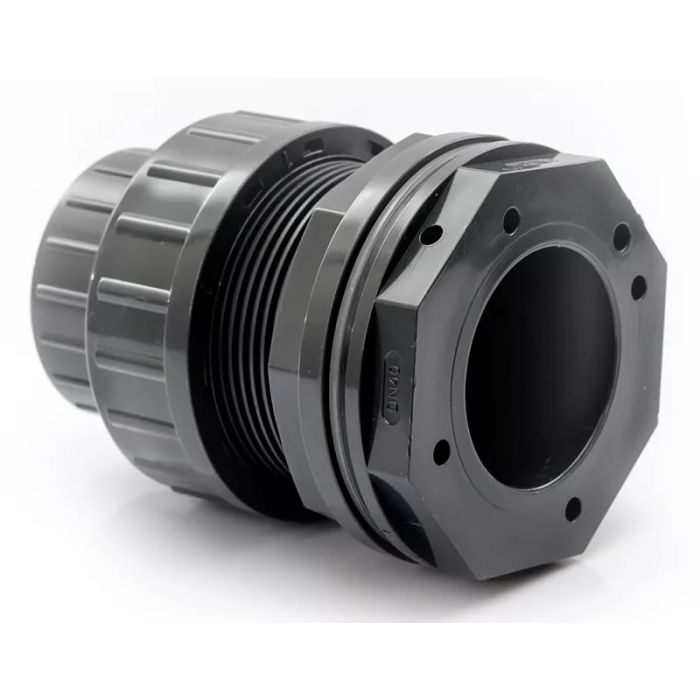

1-1/2 in. PVC Schedule-80 Union Bulkhead Water Tank Adapter w/EPDM Gasket, Gray, Socket x Socket ASTM D2467/F1970

The 247Garden 1-1/2-inch PVC Schedule-80 Union Bulkhead Water Tank Adapter is designed for professional-grade water storage, hydroponic, irrigation, and fluid transfer systems. Featuring a heavy-duty design for accommodating thicker tank walls and a hex body for easy one-person installation, this bulkhead adapter delivers maximum durability, leak resistance, and easy maintenance for both residential and commercial projects.

Key Features:

• Heavy-Duty Schedule-80 PVC
  Constructed from high-strength PVC for excellent impact resistance, long life, and high-pressure applications.

• Union-Style Socket Connection
  The union design allows for easy disassembly and reassembly without cutting pipes, simplifying maintenance and system upgrades.

• Hex Body for Easy Installation
  Hex-shaped body allows easy tightening or holding with a wrench for quick, single-person setup.

• Socket x Socket Connections
  Includes slip/socket ends for standard PVC pipe

• EPDM Gasket for Superior Sealing
  The included EPDM gasket provides exceptional sealing performance, along with excellent resistance to water, UV exposure, and a wide range of chemicals.

• ASTM Certified
  Meets ASTM D2467 and ASTM F1970 specifications for Schedule-80 PVC fittings and molded components.

• Corrosion-Free & Long-Lasting
  Will not rust or corrode, making it perfect for use in freshwater, saltwater, aquaponics, and rainwater systems.

Specifications:

• Size: 1-1/2 inch (Nominal)

• Material: Schedule-80 PVC (Polyvinyl Chloride)

• Color: Gray

• Connection Type: Socket x Socket

• Includes: EPDM Gasket & Nut

• Standards: ASTM D2467, ASTM F1970

Easy Assembly Instructions:

1. Locate and Cut Hole: Determine and cut the correct hole size in the tank with minimun hole size 2-3/4".

2. Insert Tank Adapter: Remove the nut and insert the adapter from the inside of the tank, ensuring the gasket is in place.

   • Note: The body and gasket must be installed on the inside of the tank (except for spigot-style adapters where the gasket goes outside).

3. Tighten Nut: Hold the body in place and tighten the nut clockwise from the outside by hand or with a spanner wrench.

4. Seal Check: Ensure full 360° gasket pressure contact on curved surfaces for a leak-free seal (see Minimum Tank Radius).

Technical Chart
