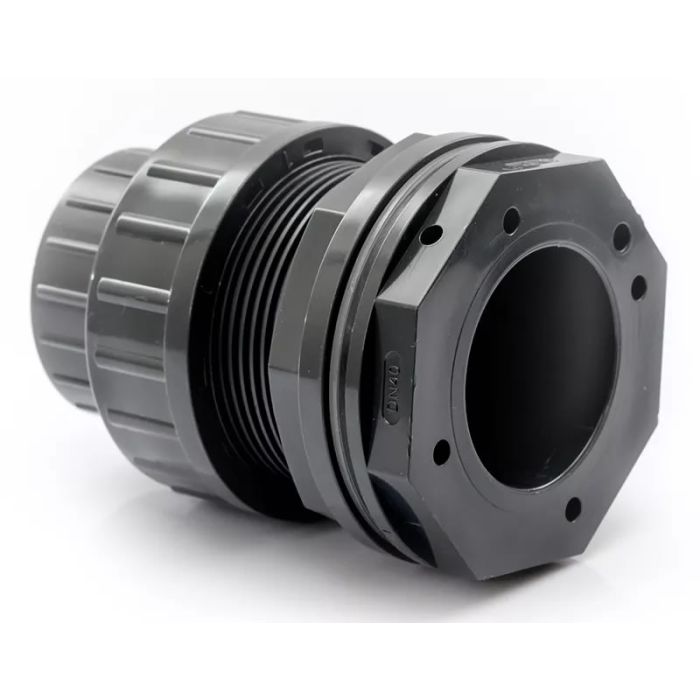

2 in. PVC Schedule-80 Union Bulkhead Water Tank Adapter w/EPDM Gasket, Gray, Socket x Socket ASTM D2467/F1970

The 247Garden 2-inch PVC Schedule-80 Union Bulkhead Water Tank Adapter is built for heavy-duty water storage, irrigation, hydroponic, and fluid transfer applications where maximum durability and leak-proof performance are essential. Its long barrel design accommodates thick tank walls, while the hex body allows fast, single-person installation, ensuring reliable and professional-grade connections.

Key Features:

• Industrial-Grade Schedule-80 PVC
  Designed to handle high-pressure and heavy-duty environments, offering superior impact resistance and chemical durability.

• Union-Style Socket Connection
  Union design enables easy disassembly and reassembly for cleaning, maintenance, or upgrades without cutting pipes.

• Long Barrel for Thick Tanks
  Perfectly suited for tanks with thick wall construction, ensuring a tight, leak-free connection.

• Hex Body for Easy Installation
  Hexagonal body design allows for quick tightening using a wrench, making single-person installation simple and efficient.

• Socket x Socket Ends
  Both side features a slip/socket connection for 2-inch PVC pipes

• EPDM Gasket Included
  High-quality EPDM gasket provides superior sealing properties, excellent resistance to water, UV rays, and many chemicals.

• ASTM D2467/F1970 Compliant
  Meets industry standards for Schedule-80 PVC fittings and molded components, ensuring consistent performance.

• Corrosion-Free Design
  Unlike metal fittings, this PVC bulkhead will not rust or corrode, making it ideal for freshwater, saltwater, aquaponics, and rainwater systems.

Specifications:

• Size: 2 inch (Nominal)

• Material: Schedule-80 PVC (Polyvinyl Chloride)

• Color: Gray

• Connection Type: Socket x Socket

• Includes: EPDM Gasket & Nut

• Standards: ASTM D2467, ASTM F1970

Easy Assembly Instructions:

1. Locate and Cut Hole: Determine and cut the appropriate hole size in your tank with minimum hole size 3-3/8".

2. Insert Tank Adapter: Remove the nut and insert the adapter from inside the tank, ensuring the gasket stays in place.

   • Note: Body and gasket must be installed on the inside of the tank (except spigot-style adapters where the gasket goes outside).

3. Tighten Nut: Hold the body in place while tightening the nut clockwise from outside with hand pressure or a spanner wrench.

4. Seal Check: Ensure full 360° gasket pressure contact for a leak-tight seal, even on curved surfaces (see Minimum Tank Radius).
