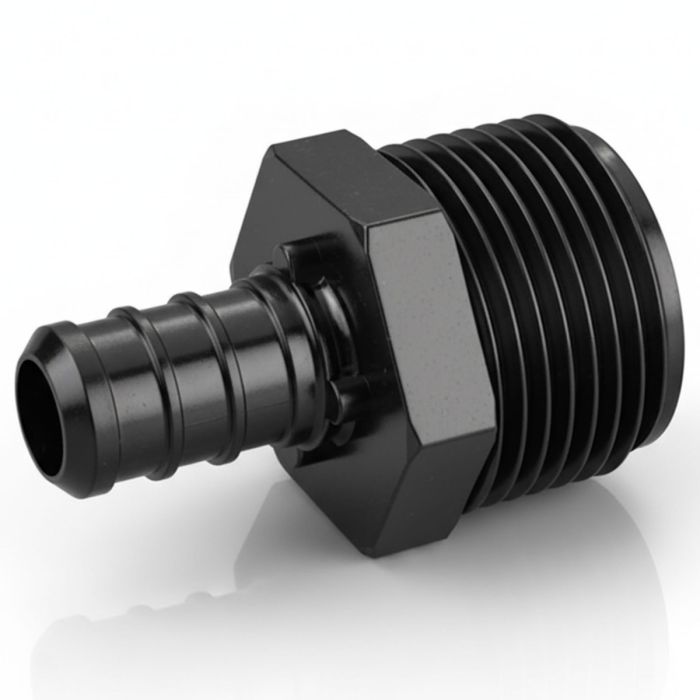

1/2" PEX-B Crimp x 3/4" Male NPT HEX Adapter Plastic PPSU PEX Crimp Fitting ASTM F2159 NSF

The 247Garden 1/2 in. PEX-B Barb x 3/4 in. MPT Male Adapter serves a crucial role in plumbing systems, acting as a bridge between 1/2-inch PEX-B tubing and a 3/4-inch male threaded pipe fitting (MPT). This adapter is essential when transitioning from PEX tubing to a larger threaded fitting, facilitating seamless integration into the plumbing system.

To install the 247Garden 1/2 in. PEX-B Barb x 3/4 in. MPT Male Adapter, follow these comprehensive instructions:

1. Preparation: Gather all necessary tools and materials for the installation process. This includes the adapter itself, 1/2-inch PEX-B tubing, a crimping tool, and appropriate safety gear such as gloves and eye protection.

2. Cutting the PEX Tubing: Measure and mark the section of PEX tubing where the adapter will be installed. Use a PEX tubing cutter to make a clean, perpendicular cut at the marked location. Ensure that the cut is straight to achieve a proper seal with the adapter.

3. Preparing the Adapter: Inspect the 247Garden 1/2 in. PEX-B Barb x 3/4 in. MPT Male Adapter for any defects or damage. Clean the barbed end of the adapter using a clean cloth to remove any debris or contaminants that may hinder the sealing process.

4. Inserting the PEX Tubing: Slide the cut end of the PEX tubing onto the barbed end of the adapter. Ensure that the tubing is inserted fully onto the barb to guarantee a secure connection.

5. Crimping the Connection: Position the crimping tool over the crimp ring of the adapter. Apply firm pressure to the handles of the crimping tool to compress the crimp ring, securing the PEX tubing onto the barb. Verify that the crimp ring is fully compressed to create a tight seal.

6. Attaching to the Threaded Fitting: Thread the 3/4-inch male end of the adapter onto the corresponding female threaded fitting. Use thread sealant or Teflon tape on the threads to prevent leaks and ensure a watertight connection. Tighten the adapter securely using a wrench or adjustable pliers, taking care not to over-tighten and risk damaging the threads.

7. Final Inspection: Inspect the entire assembly to ensure that all connections are secure and properly sealed. Check for any signs of leaks or loose fittings. Make any necessary adjustments or corrections to achieve a leak-free installation.

By following these detailed instructions, you can successfully install the 247Garden 1/2 in. PEX-B Barb x 3/4 in. MPT Male Adapter and integrate it seamlessly into your plumbing system. This adapter provides a reliable and efficient solution for transitioning between PEX tubing and larger threaded fittings, ensuring optimal performance and durability.
