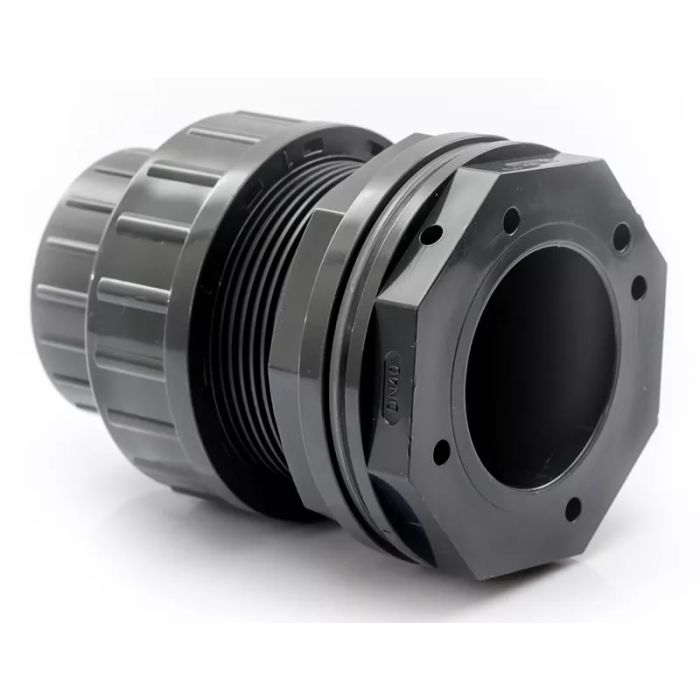

1 in. PVC Schedule-80 Union Bulkhead Water Tank Adapter w/EPDM Gasket, Gray, Socket x Socket ASTM D2467/F1970

Out of stock
- SKU
- HS-180-UTank
- Color
- Gray
- Buy 60 for $5.81 each and save 10%
Description / 1 in. PVC Schedule-80 Union Bulkhead Water Tank Adapter w/EPDM Gasket, Gray, Socket x Socket ASTM D2467/F1970
The 247Garden 1-inch PVC Schedule-80 Union Bulkhead Water Tank Adapter is built for heavy-duty water storage, hydroponic, irrigation, and fluid transfer applications. Heavy-duty designed for thick tank walls and a hex body for single-person installation, this bulkhead adapter provides a secure, leak-resistant connection for both residential and commercial systems.
Key Features:
-
Heavy-Duty Schedule-80 PVC
Constructed from premium industrial-grade PVC for high impact resistance and durability under pressure. -
Socket Union Design
Compatiable with all standard schedule 40 and schedule 80 PVC pipes -
Hex Body for Easy Installation
The hexagonal body enables easy tightening or holding with a wrench, making single-person installation simple. -
Socket x Socket Connections
Designed for versatile use, with 1-inch slip/socket ends -
EPDM Gasket Included
High-quality EPDM gasket delivers excellent sealing performance and resistance to UV, water, and a wide range of chemicals. -
ASTM Certified
Meets ASTM D2467 and ASTM F1970 specifications for Schedule-80 PVC fittings and molded components. -
Corrosion-Free
Will not rust or corrode, making it ideal for freshwater, saltwater, aquaponics, and rainwater harvesting systems.
Specifications:
-
Size: 1 inch (Nominal)
-
Material: Schedule-80 PVC (Polyvinyl Chloride)
-
Color: Gray
-
Connection Type: Socket x Socket
-
Includes: EPDM Gasket & Nut
-
Standards: ASTM D2467, ASTM F1970
Easy Assembly Instructions:
-
Locate and Cut Hole: Identify placement and cut the proper hole size in the tank with minimum hole size 2".
-
Insert Tank Adapter: Remove the nut and insert the adapter from the inside of the tank with the gasket in place.
-
Note: Body and gasket must be installed on the inside of the tank (except spigot-style adapters where the gasket goes outside).
-
-
Tighten Nut: Hold the body inside the tank and tighten the nut clockwise from outside using a wrench or by hand.
-
Seal Verification: For curved surfaces, ensure the curve allows full 360° gasket pressure contact against the tank wall (refer to Minimum Tank Radius).
Technical Chart
Nominal Size (inches) | Minimum Hole Size (inches) | Minimum Tank Radius (inches) | Max Wall Thickness (inches) |
---|---|---|---|
1" | 2" | 6" | 5/8" |
More Information
SKU | HS-180-UTank |
---|---|
Shipping Weight (Lb) | 0.750000 |
Case Qty | 60 |
GTIN | 5061057656706 |
Country of Manufacture | China |
Color | Gray |
Condition | New |
Brand | 247Garden |
PVC Schedule Type | Schedule 80 |
PVC Fitting Size | 1" |
PVC Grade | SCH80 Industrial-Graded |
PVC Fitting Type | Tank Connector, Union |
PVC Connection Type | Slip/Socket, S x S |
PVC Standard | SCH80 ASTM D2467, F1970 |
Temperature Rating | Max 60℃ /140℉ |
PVC Pressure Rating | PN16 ,16Bar, 1.6Mpa |
PVC Certification | ASTM, ANSI |
PVC Applications | General Service, Residential Project, Commercial Project, Commercial Plumbing, Irrigations, Swimming Pools, Water Parks, Aquariums, Hydroponics, Municipal and Industrial Wastewater Treatment |
SCH80 Applications | Reserve Osmosis Plants, Industrial Gasses, Medical Gases in Hospital, Boiler Pipe Line, Pit Dewatering |
PVC Features | Strong Corrosion Resistance, Compact Design, Beautiful Appearance, Easy Installation, Wide Application Usage, Sanitary/Non-toxic, Easy Assembly & Disassembly, Simple & Easy Maintenance, No Special Tools Required, Apply Solvent Cement for Secure Fit, Heavy Duty |
Prop 65 Warning | California Proposition 65 Cancer Warning - www.p65warnings.ca.gov |
